Vintage Vibe®

Vacuum Tubes

Regular price $22.50 $0.00 Unit price per

Purchase Vacuum Tubes for Wurlitzer Models 112, 120, 145, 700 and 720


Product Details

Description

Description

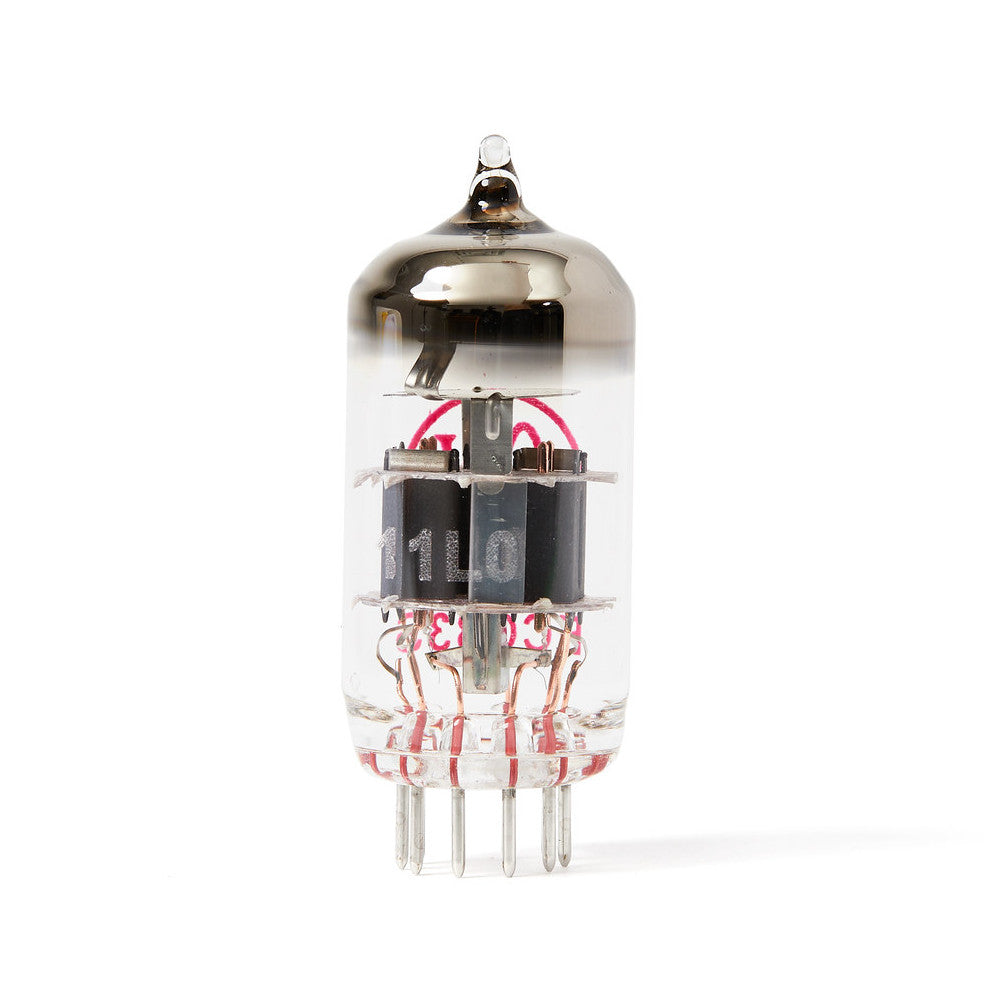

12AX7 (ECC83)
Preamplifier tube found in models 120 & 700

12AU7 (ECC82)
Preamplifier tube found in model 112

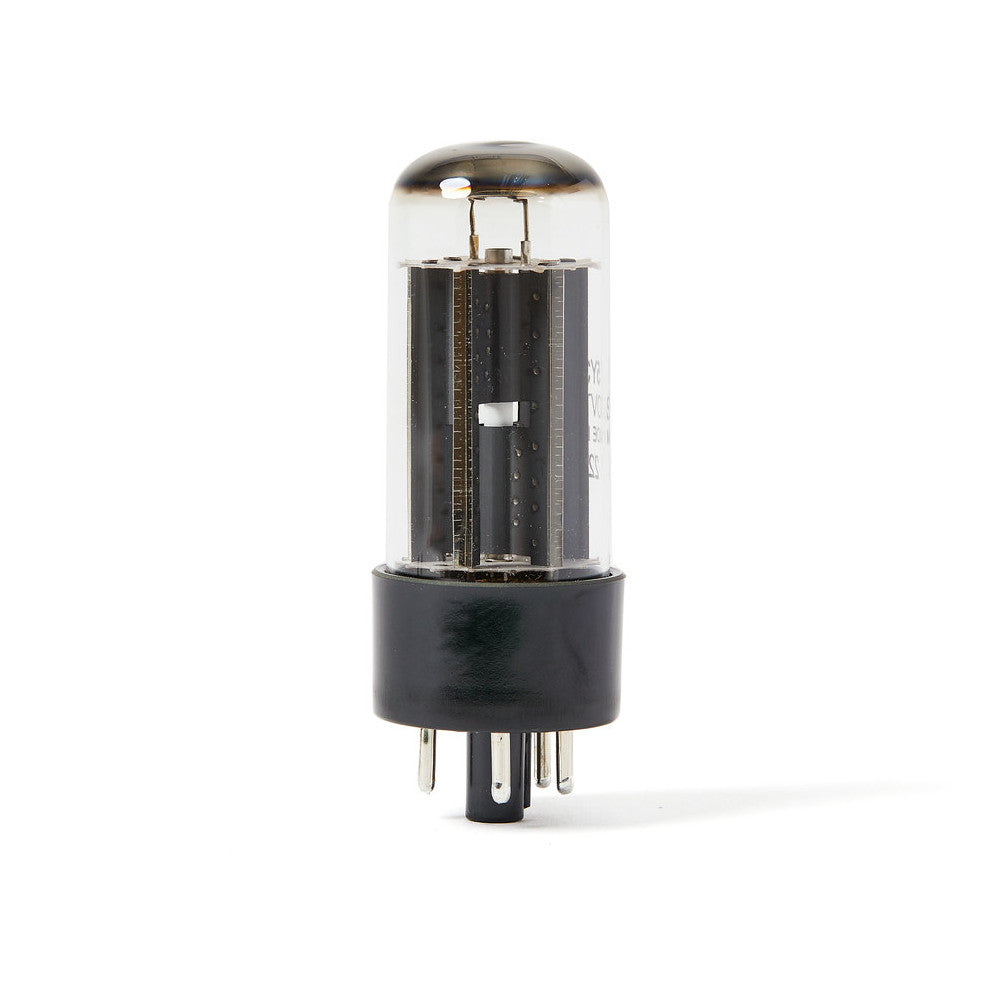

5Y3GT
Rectifier tube found in models 112, 120 & 700

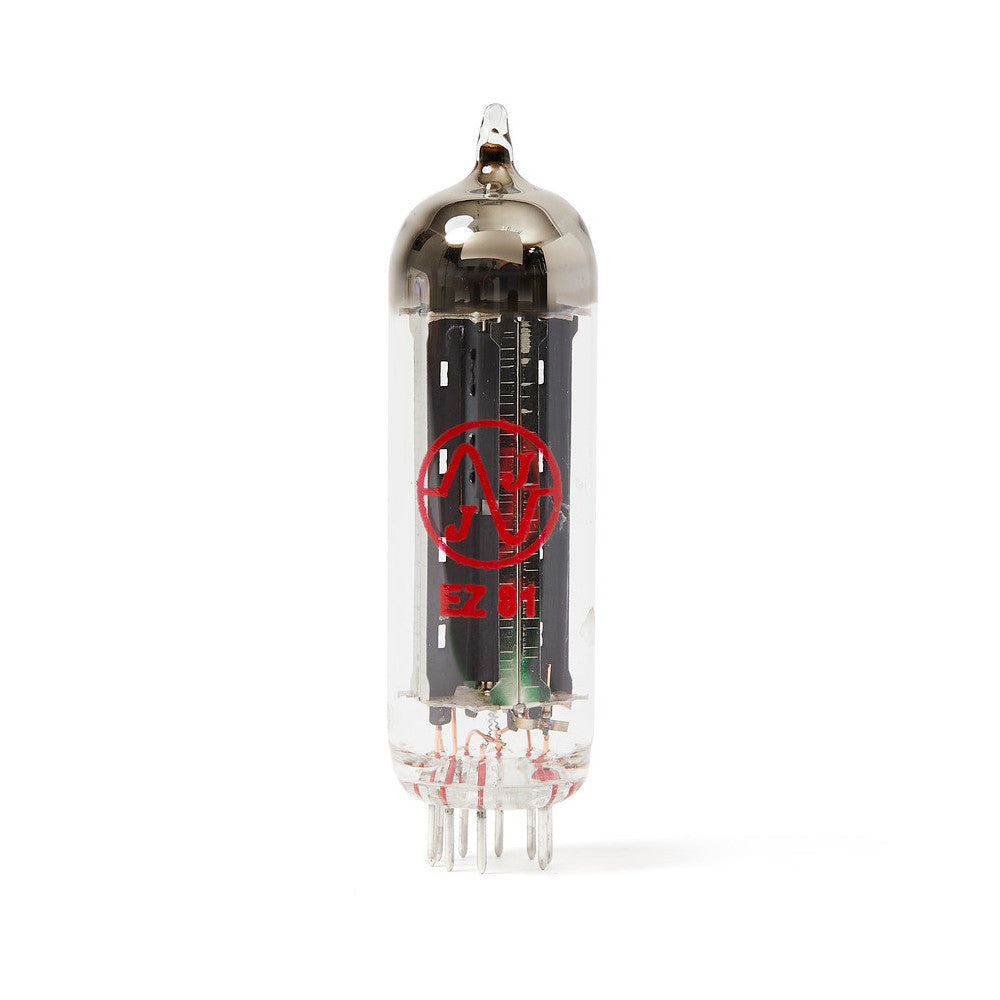

6CA4 (EZ81)
Rectifier tube found in models 145 & 720

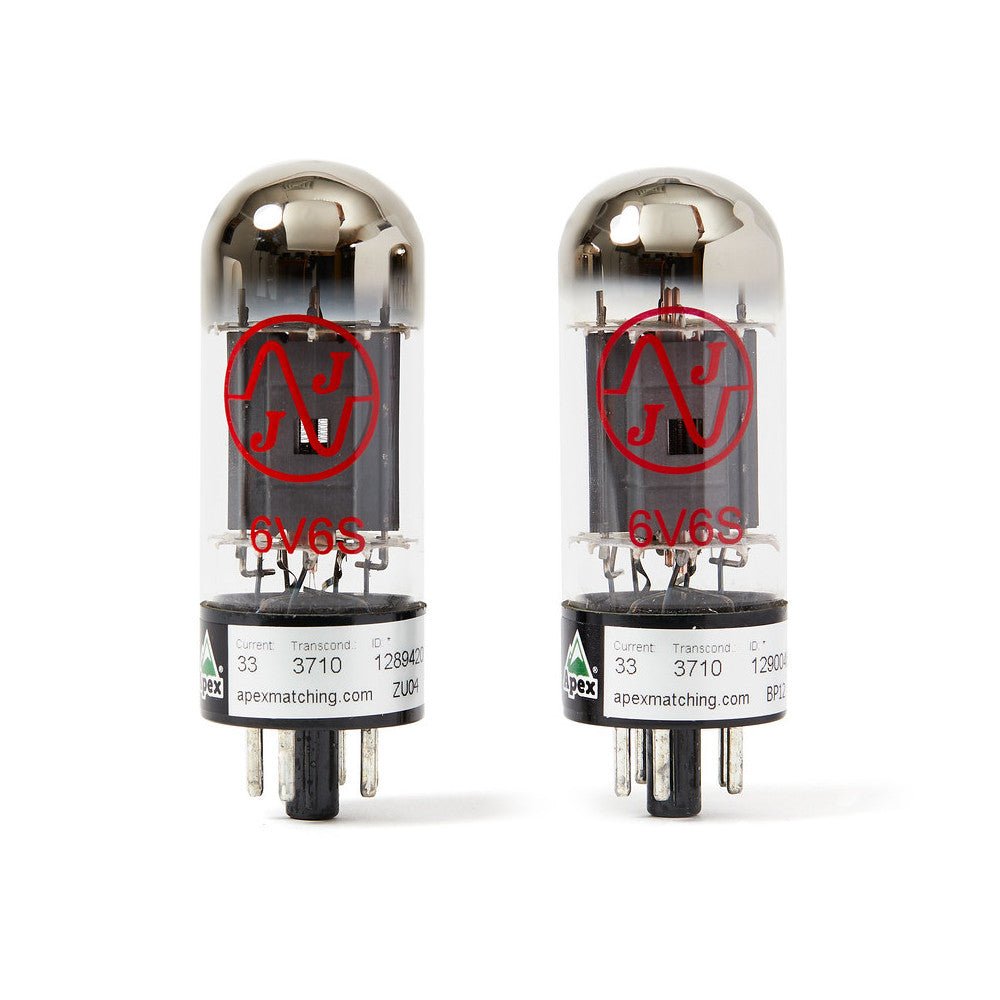

6V6
Output tube found in models 112, 120 & 700
Sold in matched pairs only

*Per the Wurlitzer model 120 and 700 schematics, there is an inherent design issue with the bias of the 6V6 output tubes:
-The model 120 schematic shows combined cathode current to be .120A and plate dissipation as 16.67W per tube.
-The model 700 schematic shows combined cathode current to be .144A and plate dissipation as 21.75W per tube.
In both instances the plate dissipation exceeds the Maximum rated value for a 6V6. The amplifier should be re-biased to not exceed plate dissipation of 12W per tube.

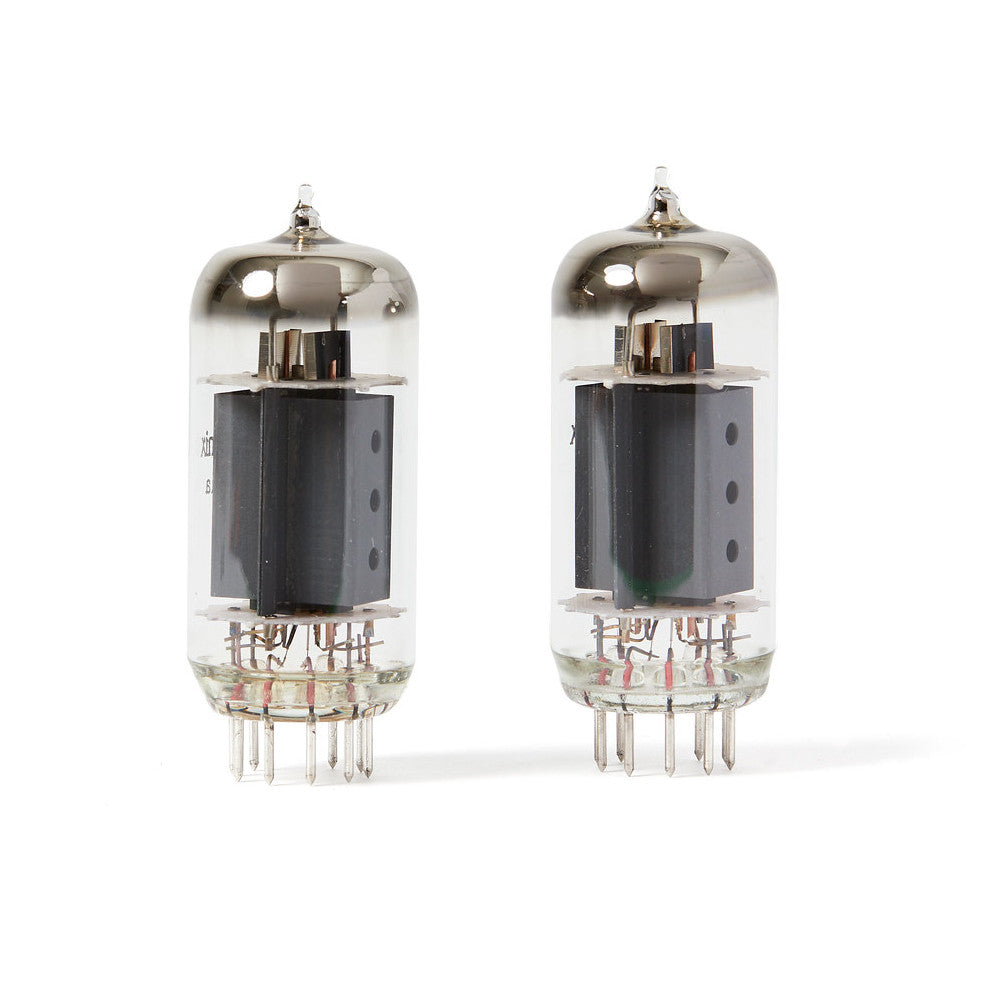

7868
Output tube found in models 145 & 720
Sold in matched pairs only
The pins are slightly larger than those produced in the USA and therefore they will fit tightly in the tube sockets and use will make reverting to NOS USA tubes difficult.
