Wurlitzer 120/700 Power Transformer

Wurlitzer 120/700 Power Transformer
Vintage Vibe®

Wurlitzer 120/700 Power Transformer

Regular price $190.00 $0.00 Unit price per

Replacement power transformer for a Wurlitzer 120/700 piano


Product Details

Description

Description

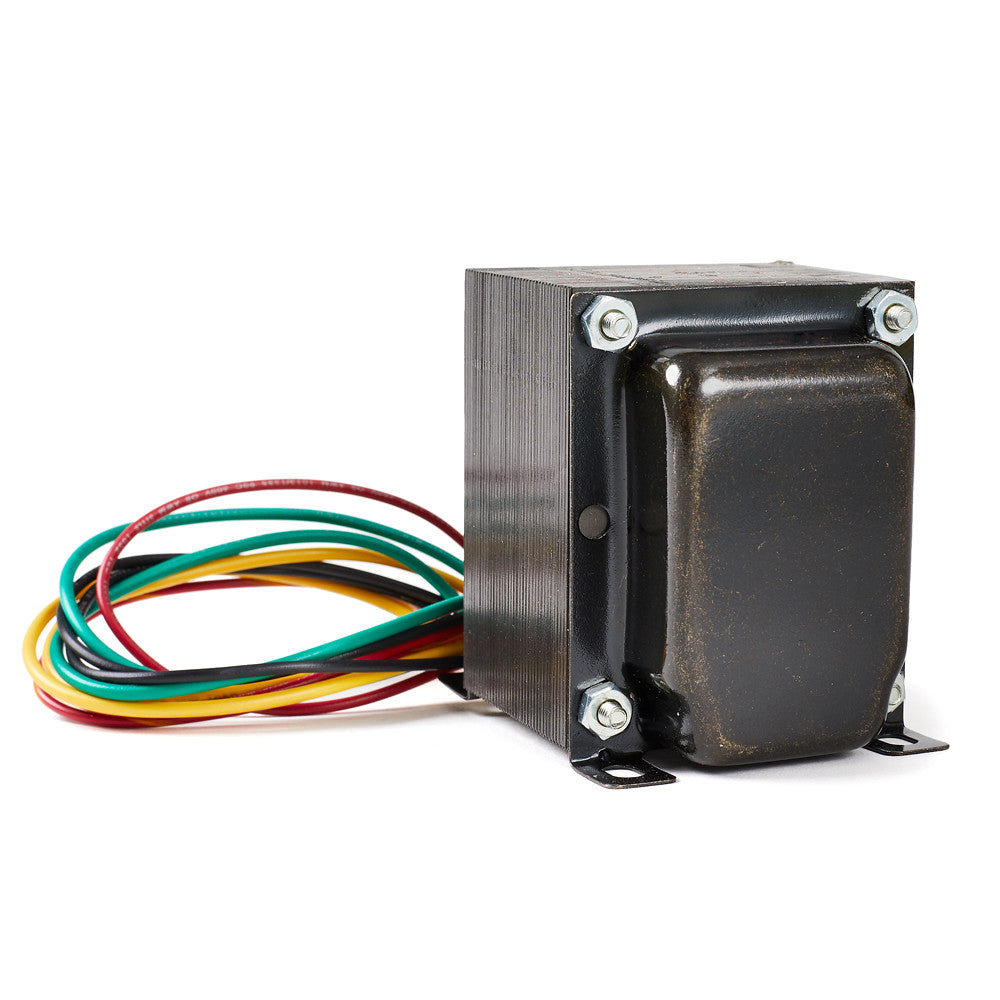

Replacement Power Transformer for Wurlitzer model 120 and 700 amplifiers.

Primary = 120VAC/60Hz

Sold individually.

Per the Wurlitzer model 120 and 700 schematics, there is an inherent design issue with the bias of the 6V6 output tubes:
-The model 120 schematic shows combined cathode current to be .120A and plate dissipation as 16.67W per tube.
-The model 700 schematic shows combined cathode current to be .144A and plate dissipation as 21.75W per tube.
In both instances the plate dissipation exceeds the Maximum rated value for a 6V6. The amplifier should be re-biased to not exceed plate dissipation of 12W per tube.

Note
This item may have a lead time of approximately 2-3 weeks.
Transformer Returns are subject to our discretion.
