Wurlitzer Line Out Module

Regular price $31.99 $0.00 Unit price per

Add a line-out to old and noisy Wurlitzers that only have a speaker output.


Product Details

Description

Whats Included

Instructions

Description

Designed to add a line-out to old, noisy Wurlitzer electric pianos that only have a speaker output, such as the 100 and 700 series models. Includes a filter circuit to roll off some unwanted low end rumble, accentuate midrange bite and provides an output level suitable for plugging into an amplifier, mixing console or pa system.

Note:
• We do not offer instructions or technical support for this item other than what is listed here.
• Improper installation or use will void any and all warranty.
• Installation of this product is performed at your own risk.  Working on electronic equipment poses an inherent risk to oneself, others and personal property.  Vintage Vibe assumes no liability for the consequences of the attempted installation of this product.
If you are not confident in your abilities to perform this type of installation you may send the unit to us for service

See Instructions Tab for Installation Instructions

Whats Included

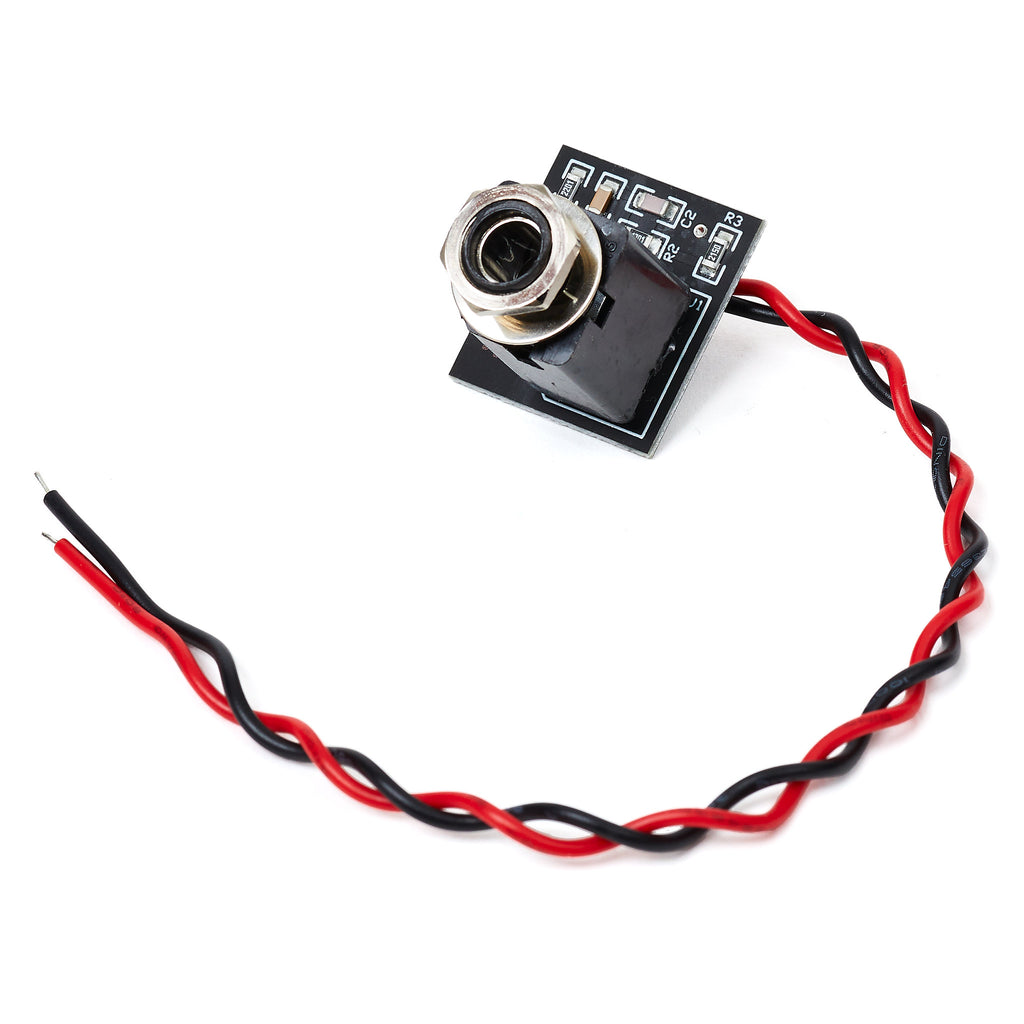

• Custom wired PCB with 1/4" output jack.

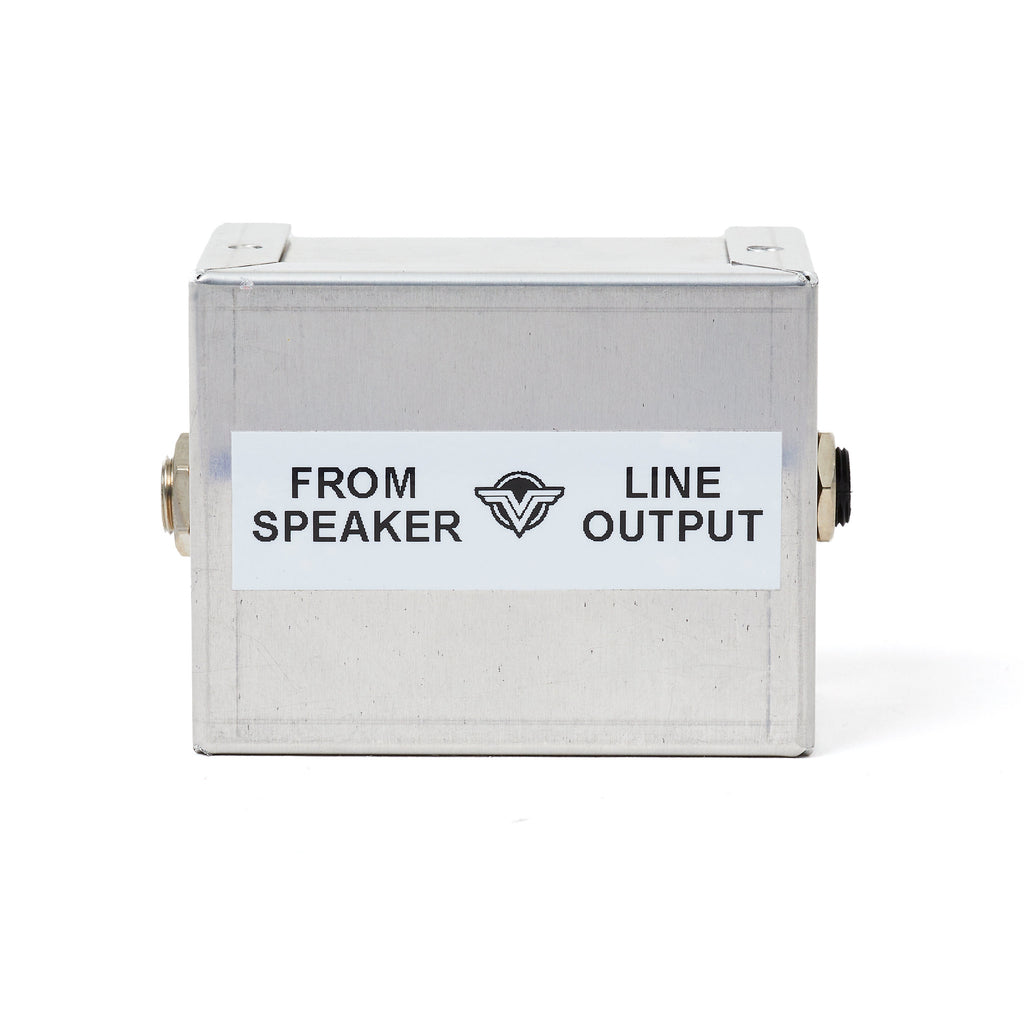

*The external version of this modification comes in a small metal box with 1/4" input and output jacks.  Simply plug the speaker output from your Wurlitzer into the input jack and the output into an amplifier, mixing console or pa system.

Instructions

Internal Line Out Module Installation Instructions:
Solder the line out module wires in parallel with the speaker output. The red wire should be soldered to the positive terminal and the black wire to the negative terminal

An easy location is at the 1/4" speaker output jack found at the rear of the chassis

For Panel installation location we recommend disconnecting the stock "PHONO" jack (as this basically serves as an antenna for undesirable noise anyway), removing it from the chassis and installing the line out jack in its place. You will need to drill the existing hole out to 3/8" diameter.

External Line Out Module Installation Instructions:
Plug a 1/4" instrument cable from either the rear 1/4" ext. speaker jack or the headphone jack into the jack marked "FROM SPEAKER" on the module. Plug another 1/4" instrument cable from the jack marked "LINE OUTPUT" on the module into your amplifier, PA, DI, Console, etc.
*When using the hedphone jack the internal speaker of your wurllitzer will be muted.
